PN:90SB0CS0-M0UAY1

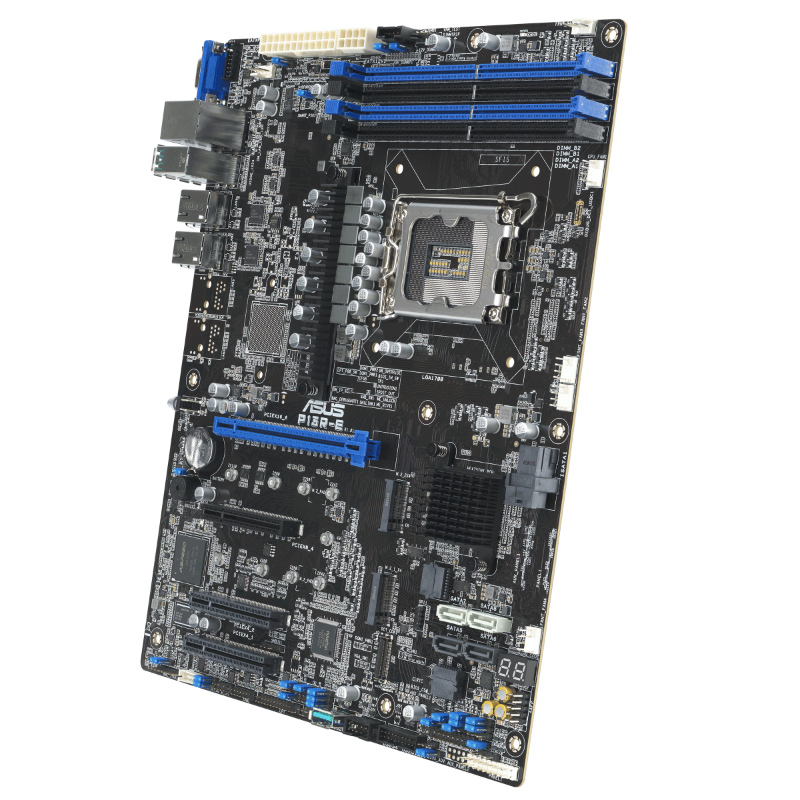

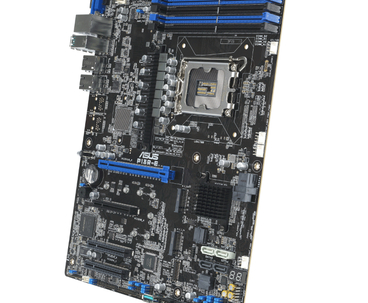

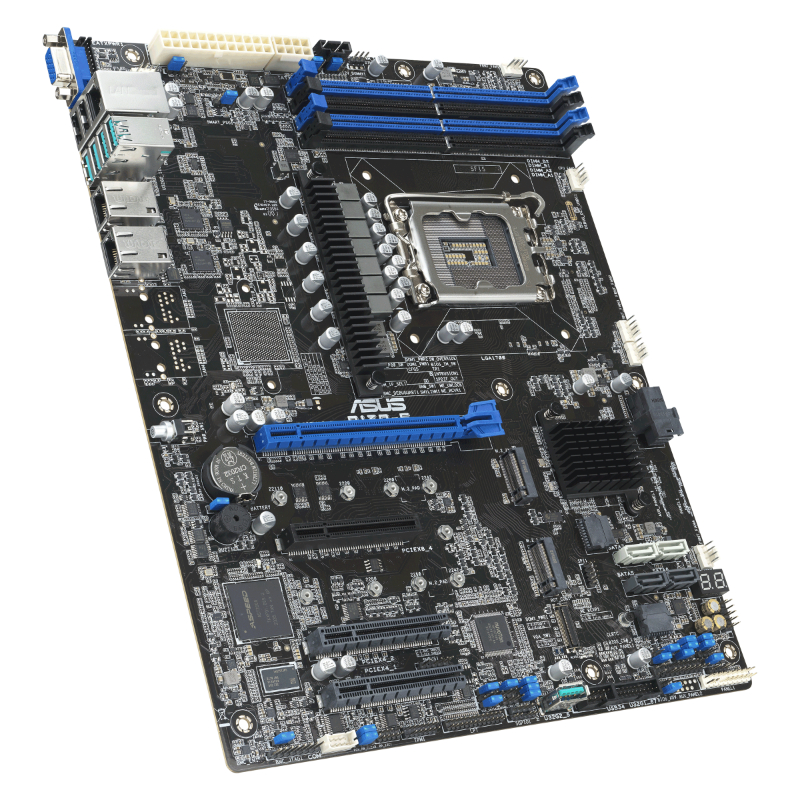

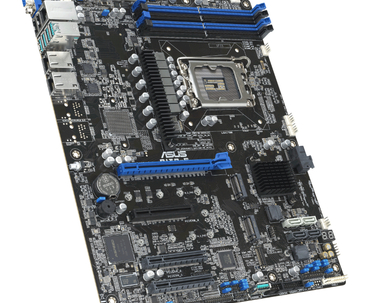

PLACA BASE ASUS SERVER P13R-E
LGA1700/C266/VGA/ ATX
PN:90SB0CS0-M0UAY1
PLACA BASE ASUS SERVER P13R-E
LGA1700/C266/VGA/ ATX
- ●Chipset: Intel C266
- ●Formato: ATX
- ●Imagen Salida: VGA
- ●Microprocesador Integrado: No
- ●Nº Bancos De Memoria: 4
- ●Nº Conexiones SATA: 8
- ●SATA 6Gb/S: 8
- ●Socket: Intel LGA 1700
- ●Tecnologia De Memoria: DDR5
Especificaciones
Processor / System Bus
1 x Socket LGA1700
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic
Intel® C266 Chipset
Memory
Total Slots: 4 (2-channel)
Capacity : Maximum up to 128GB
Memory Type : DDR5 4400 ECC UDIMM
Memory Size : 128GB
* Refer to support page for more information
Expansion Slots
Total Slot : 4
Slot 1 : PCI-E x8 (Gen4 X4 Link)
Slot 2 : PCI-E x8 (Gen4 X4 Link)
Slot 4 : PCI-E x8 (Gen5 X8 Link)
Slot 6 : PCI-E x16 (Gen5 X16 Link),
Auto switch to x8 link if slot 4 is occupied
Form Factor
ATX (12"x9.6", 305mm x 244mm)
ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center
Storage
Storage Controller :
8 x SATA 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(22110,support NVMe PCIe x4 link)
Networking
2 x Intel® I210AT2 + 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM (VGA from BMC)
On Board I/O
1 x VGA Header (VGA from BMC)
1 x TPM header
1 x COM port
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
1 x Internal USB3.2 Gen2 (type-A Vertical)
1 x USB3.2 Gen1 header,2 ports
1 x USB2.0 header

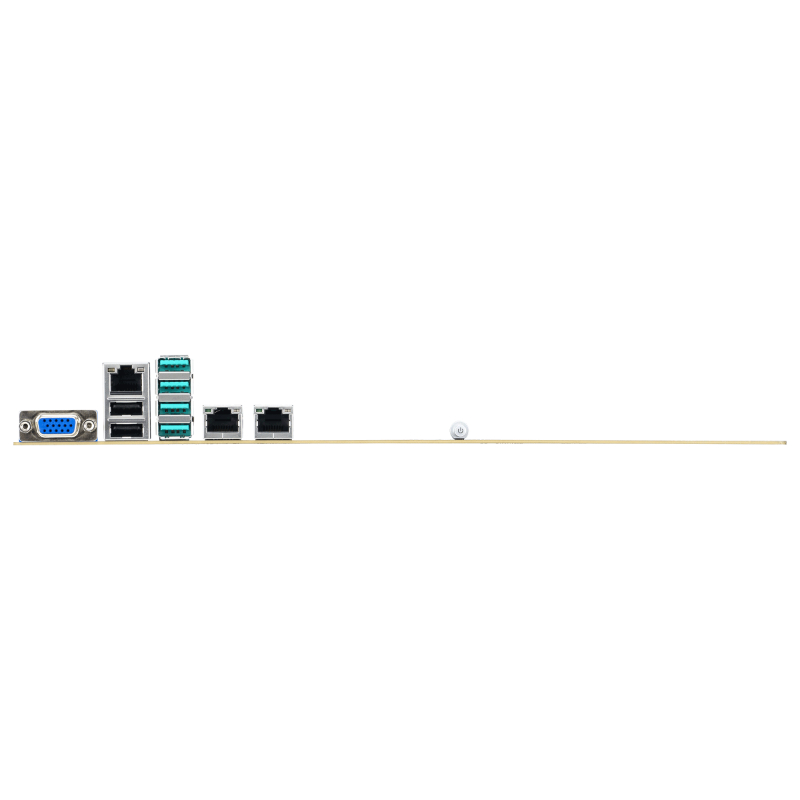

Back I/O Ports
4 x USB 3.2 Gen2
2 x USB 2.0
1 x VGA port (VGA from BMC)
2 x 1 GbE LAN + 1 x Mgmt LAN
Management Solution
On-Board ASMB11-iKVM for KVM-over-IP
Weight
Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG
Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG
Environment
Operation temperature: 10 ~ 50*
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Monitoring
CPU Temperature
Fan RPM
PN:90SB0CS0-M0UAY1
PLACA BASE ASUS SERVER P13R-E
LGA1700/C266/VGA/ ATX
