PN:90SB0C70-M0UAY0
PLACA BASE ASUS SERVER P13R-M
LGA1700/ C262/ VGA/ MicroATX
PN:90SB0C70-M0UAY0
PLACA BASE ASUS SERVER P13R-M
LGA1700/ C262/ VGA/ MicroATX
- ●Chipset: Intel C262
- ●Formato: Micro ATX
- ●Imagen Salida: Graficos en CPU, D-SUB
- ●Microprocesador Integrado: No
- ●Nº Bancos De Memoria: 4
- ●Nº Conexiones SATA: 8
- ●SATA 6Gb/S: 8
- ●Socket: Intel LGA 1700
- ●Tecnologia De Memoria: DDR5
Especificaciones:
Processor / System Bus
1 x Socket LGA1700
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic
Intel® C262 Chipset
Memory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR5 4400/4000/3600 UDIMM
Memory Size :
32GB, 16GB, 8GB
* Refer to support page for more information
Expansion Slots
Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen5 X16 Link)
Form Factor
Mirco ATX (9.6"x9.6", 244mm x 244mm)
Storage
Storage Controller :
8 x SATA3 6Gb/s ports
1 x M.2 connector (2280/2260/2242)
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking
2 x Intel® I210AT + 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
3 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 (header, 2 ports)
1 x USB 2.0 pin header (header, 2 ports)
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card

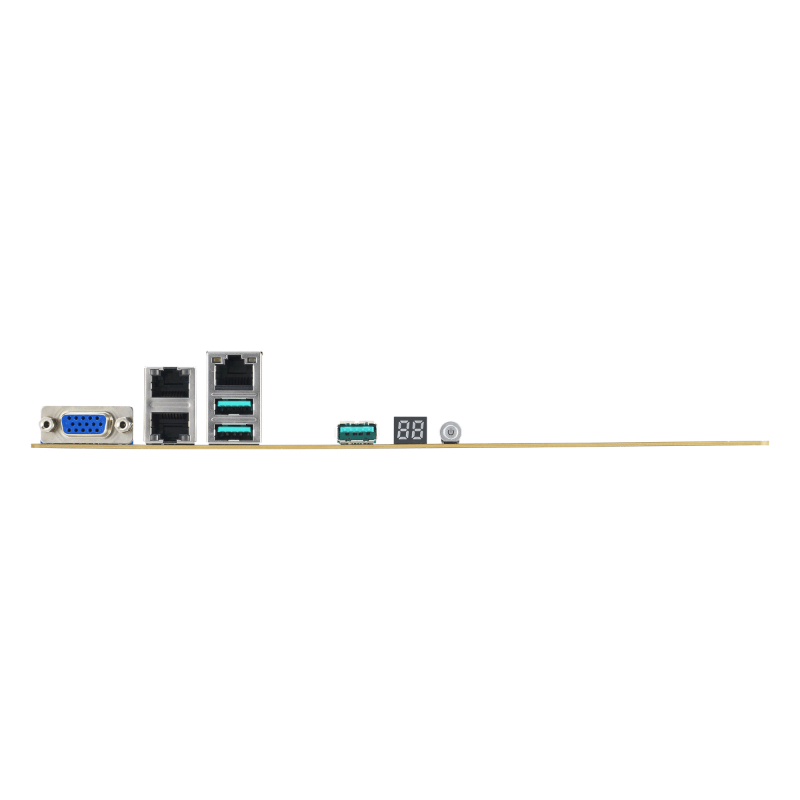

Back I/O Ports
3 x USB 3.2 Gen 2
1 x VGA Port
2 x GbE LAN + 1 x Mgmt LAN
Management Solution
ASUS Control Center Enterprise (Optional)
Onboard ASMB11-iKVM for KVM-over-Internet
Environment
Operation temperature: 10 ~ 50*
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
